High Automation Tubular Strander Cable Wire Manufacturing Machines Horizontal

Name: High Automation Tubular Strander Cable Wire Manufacturing Machines Horizontal
Brand: Herrman
Price: 1 USD

Wholesale High Automation Tubular Strander Cable Wire Manufacturing Machines Horizontal from china suppliers

Brand Name : Herrman

Model Number : 200 , 315 , 400 , 500 , 560 , 630 , 710 , 760

Certification : ISO , SGS , CE , CQC

Place of Origin : China

MOQ : 1 Set

Price : By Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10 Sets per month

Delivery Time : 3 months after receipt of down payment

Packaging Details : To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.

Usage : Stranding

Type : Tubular Structure

Application : Al , Steel , Copper wires

Motor : Siemens

Bearing : NSK

Color : Decided by user

Contact Now

High Speed Cable Stranding Machine Tubular Type Wire And Cable Strander

1. Application

It is used for stranding the steel wires , aluminum wires and copper wires , as well as stranding of control cables

The machine equips with protection measures such as automatic stopping device for wire breakage , emergency stop., it is safe and relaible

2. Technical Parameter

Bobbin size(mm)	Max. rotation speed(rpm)				Wire dia.(mm)
Bobbin size(mm)	6B	12B	18B	24B	Aluminum	Copper	Steel
200	1200	900			1.0-2.5	0.2-1.5	0.2-0.8
315	900	800			1.0-2.5	0.5-1.8	0.3-1.0
400	900	800	550		1.0-2.5	1.4-4.0	0.6-3.0
500	800	600	450	350	1.3-5.0	1.8-5.0	1.3-3.5
560	700	500	400	300	1.3-5.0	1.8-5.0	1.3-3.5
630	700	500	330	260	1.3-5.0	2.0-6.0	1.3-3.5
710	400	300			1.3-5.0	2.0-6.0	1.3-3.5
760	350				1.3-5.0	2.0-6.0	1.3-3.5

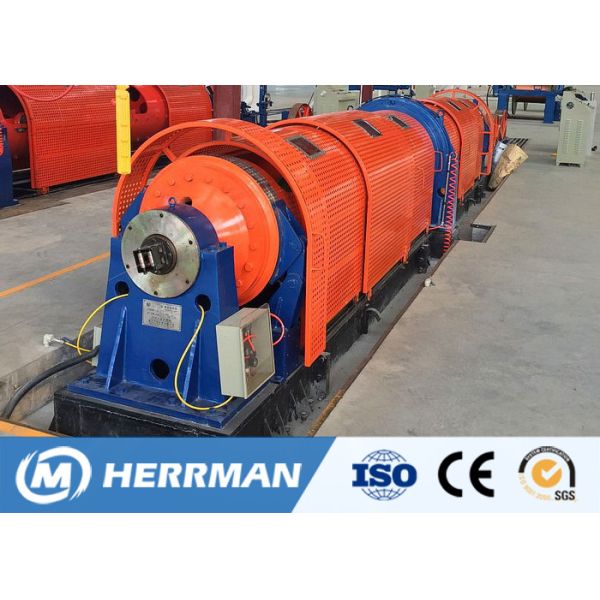

3. Picture for reference
