Al Wire And Cable Stranding Machine With Armoring Function Ground Shaft Driven

Brand Name : Herrman
Model Number : 400 , 500 , 630 , 800
Certification : ISO , CE , CQC , SGS
Place of Origin : China
MOQ : 1 Set
Price : By Negotiation
Payment Terms : L/C, D/A, D/P, T/T
Supply Ability : 10 Set per month
Delivery Time : 3 months after receipt of down payment
Packaging Details : To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Motor : Siemens
Color : Customerized
Transmission : Ground shaft and separate motor
Bearing : NSK or China famous brand
Usage : Stranding , Armoring
Application : Steel wire , Copper , Al , Al alloy
Contact Now

Planetary Type Wire And Cable Stranding Machine Aluminum , Copper , Steel Wire


1. Application


It is used for back twisting stranding of steel core aluminum wires , aluminum alloy wires , copper / aluminum wires , insulated wires and control cables . It also can be used for steel wire armoring . It has two types of transmission : ground shaft driven and separate motor driven .


2. Main components:


Pay-off stand, cage, wire die holder, non-metal taping device, meter counter, haul-off device, take up with traverse, transmission system, electrical control system and safety fencing.


3. Technical Specification


Bobbin size(mm)Max. rotation speed(rpm)Wire dia.(mm)
Solid conductor(AAC/ACSR)Finished conductorAl-clad steel wireOptical fiber cell
6B8B12B16B18B24BAluminumCopper
40012611298861.8-5.01.2-5.01.2-5.0
5001059382711.8-5.01.2-5.01.2-5.0
6308580747065571.8-5.01.2-5.01.2-5.01.2-4.51.5-5.0

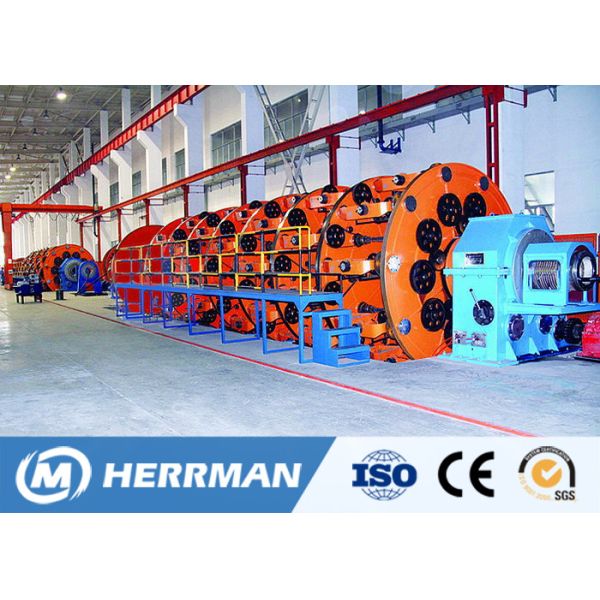

4. Picture for reference
